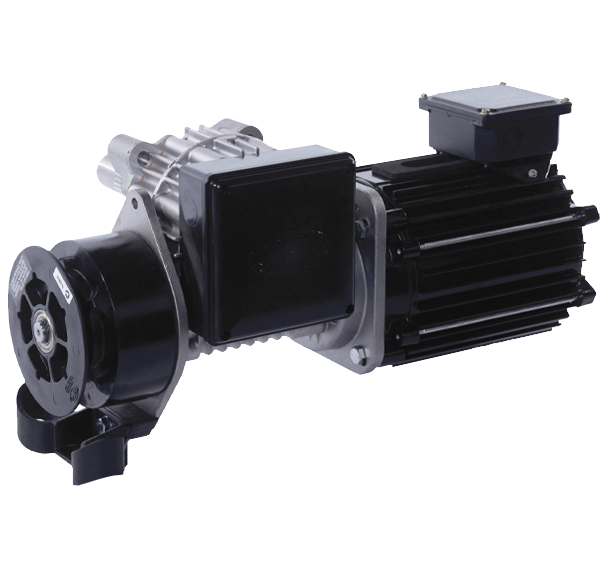

M-Drive

Built to support commercial and industrial applications, our mDrive operator is a workhorse solution for automating spring-balanced roller shutters in environments where safety, reliability, and compliance are key.

Engineered to integrate seamlessly with a wide range of wall control options, the Grifco mDrive opener is available in multiple specialised configurations, including: solenoid brake, dust ignition proof, and flame-proof Exd models that respond to your site’s specific operational needs.

Designed and manufactured locally in Australia and compatible with Grifco’s range of accessories, the mDrive operator is your solution for customising your access needs with safety, efficiency, and convenience in mind. Unlock unparalleled performance and adaptability - upgrade to the Grifco mDrive today.

Technical Specifications

Part No.	kW	Amps	HP	Voltage	Phase	Max. Door Size	IP Rating	Duty	Reversing Starter	Mechanical Logic
ML103M	0.75kW	2.30A	1.0Hp	415V	3ph	36m²	IP44	LC
ML153M	1.10kW	2.55A	1.5Hp	415V	3ph	50m²	IP44	LC

Part No.	kW	Amps	HP	Voltage	Phase	Max. Door Size	IP Rating	Duty	Reversing Starter	Mechanical Logic
ML051M	0.37kW	3.40A	0.5Hp	240V	1ph	18m²	IP44	LC
ML102M	0.75kW	6.0A	1.0Hp	240V	1ph	36m²	IP44	LC

Part No.	kW	Amps	HP	Voltage	Phase	Max. Door Size	IP Rating	Duty	Reversing Starter	Mechanical Logic
MH103M	0.75kW	1.95A	1.0Hp	415V	3ph	30m²	IP44	HC

Part No.	kW	Amps	HP	Voltage	Phase	Max. Door Size	IP Rating	Duty	Reversing Starter	Mechanical Logic
MH102M	0.75kW	4.35A	1.0Hp	240V	1ph	30m²	IP44	HC

Part No.	kW	Amps	HP	Voltage	Phase	Max. Door Size	IP Rating	Duty	Reversing Starter	Mechanical Logic
MH103M8	0.75kW	1.95A	1.0Hp	415V	3ph	36m²	IP55	HC

Part No.	kW	Amps	HP	Voltage	Phase	Max. Door Size	IP Rating	Duty	Reversing Starter	Mechanical Logic
MH103MB	0.75kW	1.95A	1.0Hp	415V	3ph	36m²	IP55	HC

Part No.	kW	Amps	HP	Voltage	Phase	Max. Door Size	IP Rating	Duty	Reversing Starter	Mechanical Logic
MH103MD	0.75kW	1.95A	1.0Hp	415V	3ph	36m²	IP66	HC

Part No.	kW	Amps	HP	Voltage	Phase	Max. Door Size	IP Rating	Duty	Reversing Starter	Mechanical Logic
MH103MF	0.75kW	1.95A	1.0Hp	415V	3ph	36m²	IP55	HC

Downloadable Resources

M-Drive Installation Manual

M-Drive Data Sheet

Compliance

Built to Australian and New Zealand Standards Fully compliant with AS/NZS 60335.1 and 60335.2.103, ensuring safe and reliable operation for commercial door applications. Installation-Specific Safety Entrapment protection requirements vary by door type and must be configured in accordance with AS/NZS 60335.2.103. Certified Confidence Certificates of Suitability available on request.

Safety & Warranty

Warranty: 2 Year

★ ★ ★ ★ ★

Tailored for Your Site

Available in specialised configurations including solenoid brake, dust ignition proof, and flame-proof Exd models. The M-Drive adapts to your unique operational requirements.

★ ★ ★ ★ ★

Heavy-Duty Reliability

Purpose-built for demanding commercial and industrial environments, M-Drive delivers consistent, long-lasting performance for spring-balanced roller shutters.

★ ★ ★ ★ ★
